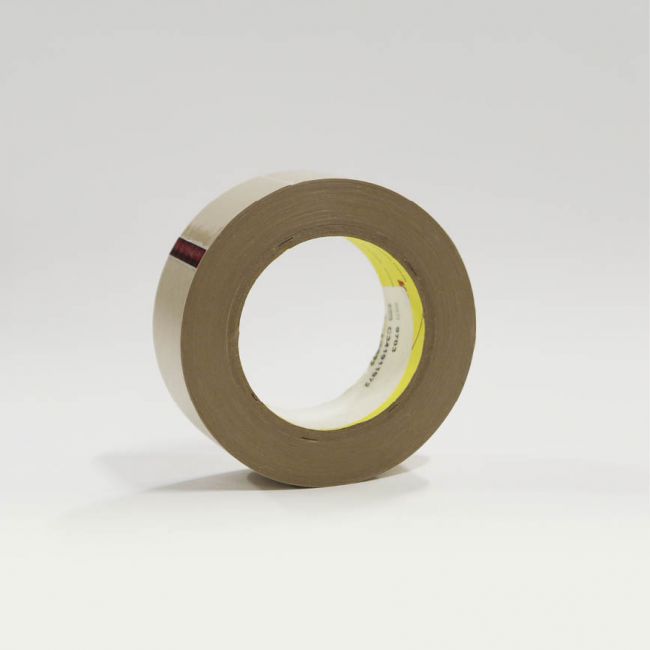

3M 9703 Z Axis Electrically conductive tape
- Low degassing of acrylic glue
- Anisotropic z-axis electrical conductivity
- PSA adhesion properties
- Thermal curing not required
- Easy to use in assembly work
- Can be used as die-cut parts or in roll form
3M ™ ECATT 9703 is a pressure sensitive (PSA) transfer tape with anisotropic electrical conduction. The PSA matrix is filled with silver particles that allow interconnections due to the adhesive thickness (the z-axis) between surfaces.
Tape 9703 connects medium pitch flexible circuits electrically and mechanically to other flexible circuits (flex), hard circuit boards (PCB) or LCD screens. Electrically conductive tape 9703 offers good adhesion to common PCB substrates such as copper, gold, FR-4 epoxy, polyimide and polyester films. Stable electrical performance in a connection application between flexible circuits may require mechanical reinforcements (terminals).
| SKU | AA09703CONFIG |
|---|---|
| GTIN-EAN / UPC | 00021200386145 |
| Shortid | 9703100 |
| MPN-Manufacturer part number | 7000048795 |
| Condition | New |
| Expected delivery date | 08-06-2026 |
| Most sold in the branch(ses) | Electronics, LED-lighting |
| Width (mm) | 102 |
| Length (m) | 33 |
| Brand | 3M tapes |
| adhesive | Acrylic |
| liner | Paper |
| Color | Transparent |
| Special characteristics | 3M ™ ECATT 9703 is a pressure sensitive (PSA) transfer tape with anisotropic electrical conduction. |
| Search terms | 3M 9703, 3M ECATT 9703, z-axis conductive transfer tape, anisotropic electrically conductive tape, PSA transfer tape silver particles, connect flex to PCB, connect flex to LCD, conductive tape for PCB substrates, AA09703CONFIG, 7000048795, Tapir Tapes |
-
