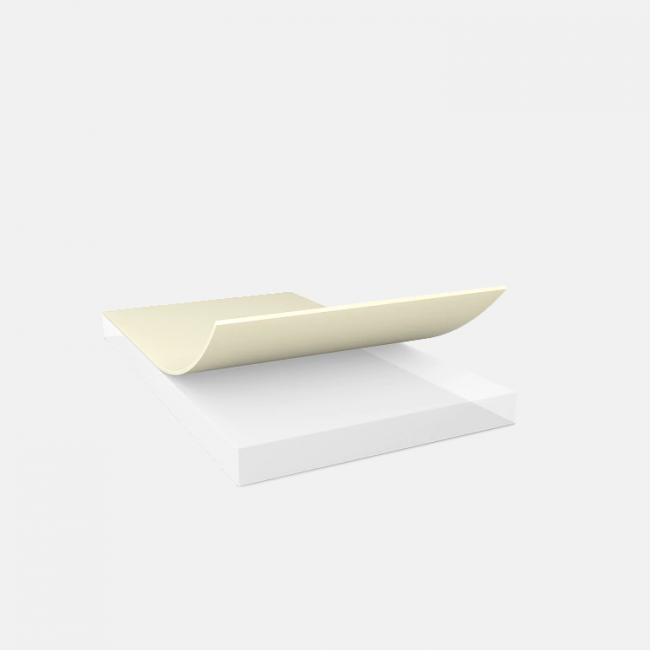

tesa 58395 double-sided thermally conductive tape (0.6 W/mK) – custom
White, 250-µm, acrylic-adhesive thermal interface tape for efficient heat transfer between heat source and heat sink. Perfect for battery cooling plates, power electronics and FPC/PCB mounting.
This thermally conductive tape contains thermally conductive fillers that ensure effective heat dissipation between a heat source and a heat sink. Thanks to its excellent adhesion performance on polar substrates, this tape offers a reliable and durable solution for thermal management in electronic and industrial applications.
Why choose the tesa 58395?
✔ Heat transfer between heat source and heat sink
✔ Cooling plate mounting in battery modules (battery modules)
✔ Mounting in power electronics units
✔ Use on flexible printed circuit boards (FPC) and printed circuit boards (PCB)
This tape is ideal for electronics, battery technology, automotive and industrial applications, where high thermal conductivity and reliable adhesion are required.
Feitenkaart
-
Producttype: Thermally conductive double-sided tape
-
Model: tesa 58395
-
Thickness: 0.250 mm (250 µm)
-
Thermal conductivity (Z): 0.6 W/mK
-
Adhesive: Acrylic
-
Color: White
-
Liner: Paper
-
Dielectric strength: 4 kV
-
Temperature: −40 … +125 °C (short 150 °C)
-
Roll length: 33 m | Log width: 1000 mm
-
Typical uses: Battery cooling plate, power electronics, FPC/PCB
-
Custom converting: Slitting & die-cut available
| SKU | AW58395CONFIG |
|---|---|
| Condition | New |
| Expected delivery date | 08-06-2026 |
| Production tolerances: |
Cutting Roll width up to 100mm +/- 1.0mm and above 100mm +/- 2.0mm. Roll width outer diameter with respect to roll width core diameter +/- 1.0mm. Water is used. This can leave "stains", but does not affect the adhesive result |
| Most sold in the branch(ses) | Electronics, LED-lighting, Wind- and solar energy |
| Width (mm) | 1000 |
| Length (m) | 33 |
| Thickness (mm) | 0.250 |
| Brand | tesa |
| adhesive | Acrylic |
| liner | Paper |
| Color | White |
| Temperature resistance ° C | −40 °C tot +125 °C, kortstondig 150 °C |
| remaining | Thermal conductivity (Z): 0.6 W/mK |
| Search terms | tesa 58395 – double-sided thermally conductive tape (white) |
