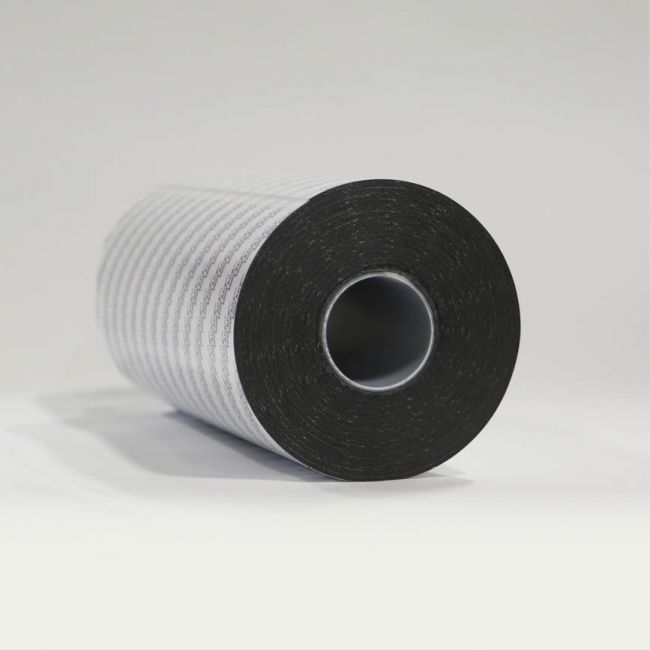

TESA 7263 P ACX plus foam black
SKU
AW07263PCONFIG
More than 1260 mm left
€8.39
€6.93
tesa ® ACXplus 7263 Multi Purpose (MP)
Click here to order a Sample "laser part"
chevron_right
Order now!
tesa ® ACX plus 7263 MP is a transparent double-sided acrylic core tape.
The viscoelastic acrylic core of tesa® ACX plus 7263 MP absorbs and spreads dynamic and static loads.
This unique formulation allows this double-sided acrylic core tape to compensate for the thermal elongation of bonded parts.
Main Applications
- The tesa® ACX plus MP product family is suitable for a wide range of multifunctional bonding applications.
- To ensure the highest possible performance, our goal is to fully understand the application (including the substrates involved) to provide the correct product recommendation.
Technical properties
- Total thickness 800 µm (0.8 mm)
- Color black
- Background material solid acrylic
- Type of glue pure acrylic
Bonding properties
- Adhesion to aluminum (after 3 days) 32 N / cm
- Adhesion on steel (after 3 days) 30 N / cm
Assessment Properties
- Short-term temperature resistance 170 ° C
- Long-term temperature resistance 100 ° C
| SKU | AW07263PCONFIG |
|---|---|
| GTIN-EAN / UPC | 4042448562241 |
| Shortid | 7263 |
| MPN-Manufacturer part number | 07263-60000-42 |
| Condition | New |
| Expected delivery date | 05-06-2026 |
| Production tolerances: |
Cutting Roll width up to 100mm +/- 1.0mm and above 100mm +/- 2.0mm. Roll width outer diameter with respect to roll width core diameter +/- 1.0mm. Water is used. This can leave "stains", but does not affect the adhesive result |
| Most sold in the branch(ses) | Contruction, Electronics, Plastic processing, LED-lighting, Project design & Home furnishings, Exhibition and Advertising |
| Width (mm) | 1260 |
| Length (m) | 25 |
| Thickness (mm) | 0.800 |
| Brand | tesa |
| Sub-brand | ACX |
| adhesive | Acrylic |
| carrier | Acrylic Foam |
| liner | Paper |
| Color | Black |
| adhesion to steel (N/100 mm) | 30 |
| Temperature resistance ° C | Kort 170 ° C - Lang 100 ° C. |
| Search terms | tesa, 7263, tape, double sided tape, single sided tape, custom, die cutting, Tapir Tapes, AW07263PCONFIG |
