High-quality, single-sided electrically conductive foam tape for reliable EMI shielding and grounding applications. Excellent conductivity, adhesion and durability. Order now from Tapir Tapes!
Highly compressible, electrically conductive foam tape for various applications including EMI shielding and grounding. High conductivity and adhesion.
Our electrically conductive foam tape is the ideal solution for a wide range of applications requiring a high degree of electrical conductivity. This tape is made of a highly compressible, electrically conductive foam and a specially developed conductive adhesive.
Features:
- Excellent conductivity: Ensures reliable EMI shielding and grounding.
- High adhesion: Remains firmly in place, even under harsh conditions.
- Highly compressible: Adapts perfectly to irregular surfaces.
- Durable: Resistant to high temperatures and humidity.
- Shock absorbing: Protects sensitive components.
Applications:

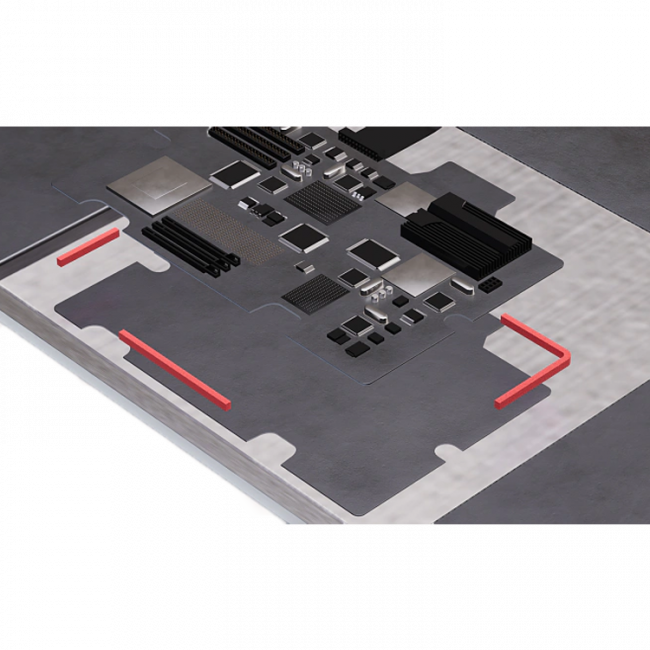

- EMI shielding: Protects electronic equipment from electromagnetic interference.
- Grounding: Prevents static electricity build-up.
- Various industrial applications: Where a combination of electrical conductivity, damping and adhesion is required.
Technical Specifications:
- Thickness: 2000 µm
- Backing: Conductive foam
- Colour: Grey
- Adhesive: Conductive acrylic
- Temperature resistance: 200°C (short term)
- Contact resistance: 0.03 Ohm/square inch (z-direction)
- Adhesive strength on steel: 8.5 N/cm (after 14 days)
Why choose our electrically conductive foam tape?
Our tape offers an excellent balance between performance and ease of use. Whether you work in electronics, automotive or another industry, our tape will help you successfully complete your projects.
Order now from Tapir Tapes and benefit from our fast delivery and excellent customer service!
| SKU | AW602181000020 |
|---|---|
| Condition | New |
| Expected delivery date | 08-06-2026 |
| Most sold in the branch(ses) | Electronics, LED-lighting, Wind- and solar energy |
| Width (mm) | 1000 |
| Length (m) | 20 |
| adhesive | Acrylic |
| carrier | conductive foam |
| liner | Foil |
| Thickness (mm) | 2.000 |
| Color | Gray |
| adhesion to steel (N/100 mm) | 8.5 |
| Temperature resistance ° C | Kort 200 °C |
| Special characteristics | Contactweerstand: 0.03 Ohm/square inch (z-richting) |
| special applications | Waar een combinatie van elektrische geleidbaarheid, demping en hechting vereist is. |
| Brand | tesa |
| Search terms | electrically conductive foam tape, EMI shielding, grounding, conductivity, adhesion, durable, shock absorbing, industrial applications, electronics, automotive, Tapir Tapes |
