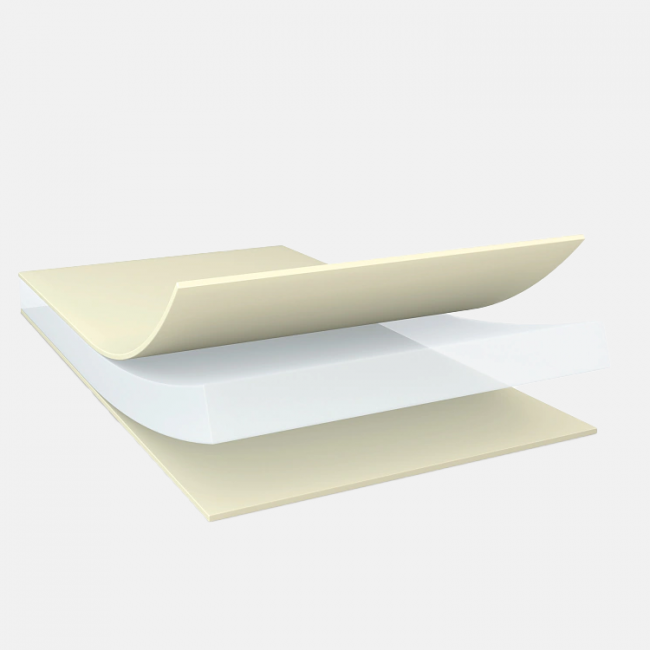

tesa 60742 Double-sided tape, thermally conductive, white
This ultra-thin thermally conductive transfer tape is perfect for electronics, PCB mounting, display installations and other applications where compact design, thermal management and reliable adhesion are essential.
The tesa 60742 is an ultra-thin transfer tape specially developed for high-quality thermal management in electronic devices. Thanks to its high thermal conductivity and strong adhesion, this tape is ideal for applications where heat transfer and minimum thickness are crucial. The tesa 60742 adheres excellently to heat sources and heat-dissipating materials, such as displays, MLB (Multilayer Boards) and graphite plate modules.
Why choose the tesa 60742?
✔ Ultra-thin construction for mounting in compact electronic devices
✔ High thermal conductivity in the z direction for maximum heat dissipation
✔ Strong adhesion to heat sources and heat spreaders
✔ Excellent wetting of surfaces for optimal adhesion
✔ Easy processing and installation
✔ Excellent electrical insulation for increased safety
✔ Optimal heat dissipation from MLB/FPC to heat spreaders
✔ Attachment of graphite plate modules for improved thermal performance
| SKU | AW607421040200 |
|---|---|
| Condition | New |
| Expected delivery date | 08-06-2026 |
| Most sold in the branch(ses) | Electronics |
| Width (mm) | 1040 |
| Length (m) | 200 |
| adhesive | Acrylic |
| liner | Foil |
| Thickness (mm) | 0.01 |
| Color | White |
| Brand | tesa |
